Bringing OPENSTEP 4.2's VESA Support Back to Rhapsody, Byte by Byte

RhapsodiOS is an open-source reimplementation of Apple’s Rhapsody, the system that became Mac OS X Server 1.0. It is forked from Darwin 0.3, the source Apple released in the summer of 1999. It targets both PowerPC and Intel.

On Intel, Rhapsody’s console has always been plain VGA. The booter paints a 16-colour panel, the kernel prints into VGA text mode, and a graphical desktop needs a card-specific driver.

That is odd when you look at OPENSTEP 4.2, Rhapsody’s predecessor. In August 1999, NeXT (by then Apple) shipped OPENSTEP 4.2 User Patch 4 for Intel. Its post_install script calls it the “VBE enabled booter” patch. It taught three layers of the system to use VESA BIOS Extensions 2.0: the booter, the kernel and a new display driver, VBE20DisplayDriver. Rhapsody had already forked by then, and it never got any of it.

This post is about carrying that patch across to Rhapsody by reverse engineering, and about the handful of surprises on the way.

What the patch contained

The patch is a NeXT .pkg that wraps a compress-ed tarball. That turned out to be the first puzzle. Neither GNU tar nor Python’s tarfile could read it. The inner tar uses a 225-byte name field instead of the standard 100, so every other header field sits 125 bytes later than a reader expects. And the .tar.Z is compress(1) LZW, which Python’s gzip module will not open, although gzip -dc on the command line will. A small custom extractor handled both.

Inside were three reference binaries, none of which exist in Rhapsody:

• usr/standalone/i386/boot, a 44,848-byte booter that announces itself as OPENSTEP boot v40.13.1.2;
• a fat mach_kernel (m68k, i386 and SPARC), whose i386 slice exports two new functions, _FBAllocateVBEConsole and _VBEModeInfo2IODisplayInfo;
• VBE20DisplayDriver.config, holding the driver’s kernel half (a 2,324-byte __text) and a Configure.app inspector.

The rules I set myself

The goal was not “VESA support”. It was this VESA support: 4.2’s, as close to its bytes as our compiler allows. Every function followed the same loop:

1. Disassemble the reference function and measure its extent.
2. Write C.
3. Build it on a Rhapsody guest with the project’s own build tool.
4. Compare the result with the reference, masking only the bytes that must differ, such as addresses of strings, globals and call targets.

Each function ends in one of three outcomes: byte parity, structural parity (with every unmatched byte counted and explained), or a forced divergence (labelled in the source and in a divergences record).

Two more rules turned out to matter more than I expected.

• Reproduce reference defects, don’t fix them silently. When Apple’s code was wrong, the reconstruction stayed wrong on purpose, with a comment on the line saying so. Fixing a defect is a decision, and it gets made in the open.
• Mark every claim as [measured] or [inference], on the line that makes it. Across the project, the most damaging mistakes were inferences that hardened into “facts” as they were copied from one document to the next. One of them was only caught at the very end, and I come back to it below.

How the three layers talk

The layers never call each other. They meet at fixed addresses inside KERNBOOTSTRUCT, the block the booter leaves at physical 0x11000 for the kernel:

The driver and the kernel both reach these as bare integer constants, with no symbol and no relocation, so the reconstruction has to do the same.

In Rhapsody’s version of the struct, all three addresses fall inside a 7,500-byte _reserved field. So the offsets could be kept exactly, and the fields named, with compile-time assertions that they sit where 4.2 put them.

Layer one: the driver

The driver was the warm-up. Thirteen of its fifteen functions reassemble to the reference’s instructions; the other two match in control flow. Two things it does are worth mentioning:

• It computes the frame buffer’s length wrongly, as bytesPerScanline × xResolution rather than × yResolution. That is Apple’s bug, reproduced and labelled.
• Its mode strings always say Refresh:0Hz. The reason only became clear one layer down.

Layer two: the kernel

VBEModeInfo2IODisplayInfo translates a VBE mode record into DriverKit’s IODisplayInfo. It is a 539-byte leaf function with an inline 31-entry jump table. It is also where the Refresh:0Hz comes from: 4.2 stores a literal zero into the refresh rate, because the VBE record has no field to take it from.

A linked kernel has no relocation table, so there was nothing to tell the comparison which bytes are addresses. The harness instead masks by pattern:

• the imm32 of the jmp [eax*4 + table] dispatch;
• the 31 table entries.

With that in place, all 411 remaining bytes matched on the first compile.

FBAllocateVBEConsole came out at structural parity. 4.2’s compiler had inlined the existing console allocator into it, and calling that allocator is the honest way to spell it. Wiring it into BasicAllocateConsole() turned up a pleasant surprise: 4.2’s own _BasicAllocateConsole is ours plus exactly nine bytes, the new call and the test of its result.

To prove the driver now links, I booted a kernel without the new functions next to one with them, in the same QEMU session. The old kernel produced the error I wanted to see: rld(): Undefined symbols: _VBEModeInfo2IODisplayInfo. The new one loaded the driver cleanly.

Layer three: the booter

This was most of the work.

Finding its load address

The 4.2 booter is headerless: just bytes. To disassemble it, I needed to know where it loads. The test was simple. Take the file offsets of its VBE-related strings, try candidate base addresses, and see which base makes the code’s 32-bit operands point at them. At 0x3000, all twelve operands naming its eleven VBE strings did. At every other candidate, none did. That is also where Rhapsody’s booter loads.

A hard 45,056-byte ceiling

boot1 reads 88 sectors into memory at 0x3000. Before doing that, it has moved itself to 0xE000, and 0x3000 + 88 × 512 is exactly 0xE000. So the second-stage booter cannot exceed 45,056 bytes without overwriting the code that is loading it.

Our booter started at 44,576 bytes: 480 bytes spare, and roughly 1 KB of VBE code to add. Apple’s own stock Rhapsody booter on the test image was only 39,616 bytes. So there was fat to find. Trimming removed an unused module loader, a pair of unused big-endian swap routines, and a dead stack-pointer helper.

I had hoped to remove strtol as well. It is dead in the booter, but the standalone linker, sarld, is built from the same library and still needs it. That boundary never shows up in a scan of the booter alone.

The file is not what boots

Writing a new /usr/standalone/i386/boot changes nothing. boot1 reads the NeXT disk label and loads the booter from the boot blocks it names, of which there are two copies. So I wrote a small tool to install a booter into both slots of a test image and read them back by hash.

Every boot capture then had to prove which booter had run. The boot banner does just that: ours prints Rhapsody boot v5.0.2, Apple’s prints v5.0.41.1.

A comparator for code with no relocations

The booter has no symbols and no relocations, so I wrote a comparator on top of capstone. It requires the two instruction streams to agree exactly. It masks a 32-bit operand only when both values fall inside their own image’s address range, and every masked address has to map one-to-one across the whole function.

A review pass caught a hole in it. A branch that stayed inside the function in one build but jumped out of it in the other was being treated as an “address” and masked. jne +1 against jne +0x64 reported a match. It was one condition to fix, and one regression test, but a tool that says MATCH is only worth anything if it can’t say it wrongly.

Running Apple’s booter against our disk

Booting the 4.2 booter itself under QEMU was the most direct way to learn how the reference behaves. It could not read our disk: it assumes a big-endian UFS superblock, the same bug our own booter had once had. But its VBE Check option needs no filesystem, and it ran. That gave measured ground truth for the rest of the work:

• QEMU’s VGA BIOS reports VBE 3.0, on both the Cirrus and the standard adapter.
• The usable-mode lists: 4.2’s filter finds 8 usable modes on Cirrus and 30 on the standard adapter. Mode 257 (640×480, 8-bit) comes first on both.
• The version check: 4.2 accepts any VBE version from 2.0 up. Our booter’s leftover code demanded exactly 2.0, so it would have refused QEMU outright.

The ninetieth record

4.2’s mode array holds up to 90 records. In Rhapsody’s struct, the 90th record would run 8 bytes into boot_video, a field 4.2’s struct never had. That made the first forced divergence: our enumerator stops at 89, leaving the 90th slot zero for the driver’s scan to stop on. It is one changed byte in an otherwise byte-identical 328-byte function.

What came across

With the room made, the 4.2 code came across function by function, almost all at byte parity:

• the mode-record writer;
• the mode filters;
• the enumerator;
• the mode setter;
• the VBE Mode lookup in the boot path;
• the VBE Check listing, which draws the same pixels as 4.2’s own booter on the same adapter.

4.2’s setMode and its VGA “Boot Graphics” panel came across too. Our tree’s planar drawing code turned out to be byte-identical to 4.2’s already.

4.2’s code also does things you might not guess. It enumerates modes on every boot. It sets the VBE mode as the very last thing before jumping to the kernel. And it prints nothing at all when that succeeds.

A use-after-free that 4.2 had avoided

Our booter stores a pointer to each loaded driver’s configuration table, then frees the table. For years nothing read the pointer back. The new VBE Mode lookup does. It worked only because the VBE driver happened to be last in the load order, so its freed memory had not been reused yet.

With the driver listed first, the key vanished and no VBE mode was set. The fix was to rebuild 4.2’s loadOtherConfigs, all 716 bytes of it, byte for byte. It points the table at the permanent copy the booter hands the kernel.

The final booter is 45,008 bytes: 48 bytes under the ceiling.

Mapping the frame buffer

The last piece is the kernel’s. In 4.2, pmap_bootstrap maps the frame buffer’s physical address into kernel virtual memory and publishes the address at 0x12854. Reading the disassembly confirmed what earlier work had only inferred: the value really is a mapped virtual address.

As far as I can tell from the code, 4.2 does not reserve that range. Its mapping sits inside the region the kernel later hands out for its own allocations. I reserve it instead. I also added a check 4.2 never had, so that a large frame buffer can’t run past the kernel’s 1 GB address limit.

The first run of a console that had never run

The first boot with the mapping in place triple-faulted, in a reset loop. A memory dump taken just before the fault told the story. The frame buffer held 307,200 bytes of the console’s background colour, drawn perfectly through the new mapping. Then came a write three bytes before it.

A frame-buffer console had never run at boot on i386 before, and never on a 640×480 screen. It asked for a 640×480 window, and on a 640×480 screen the window’s border starts at x = -3.

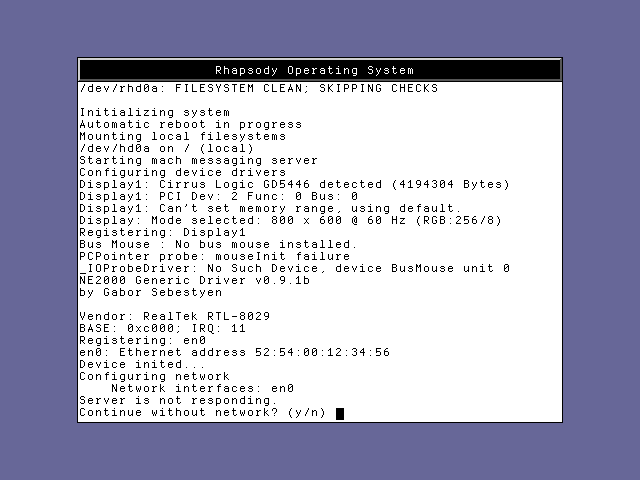

4.2 asks for three-quarters of the screen instead. Rebuilding 4.2’s Init made the console readable. That is the screenshot at the top of this post: a 480×360 window, centred, scrolling through the boot.

Faithful, except where it shouldn’t be

The reconstruction is 4.2’s bytes wherever that is harmless. Where it isn’t, each difference is a labelled decision:

• Forced by Rhapsody’s layout: the 89-record cap.
• A choice: keeping Rhapsody’s 8-bit palette rather than 4.2’s. The console’s colour indices follow it, so its text stays black on white.
• 4.2 bugs, fixed on purpose:
  • the dangling config pointer, including on a driver-disk path where 4.2 itself dangles;
  • the unreserved frame-buffer range;
  • frame-buffer alerts that wiped the screen before saving what was under them;
  • 4.2 reading the BIOS’s segment:offset mode-list pointer as (seg << 16) | off instead of seg × 16 + off.
• Our own bound: the 1 GB check on the mapping.

What’s next

Everything here was measured under QEMU, not on real hardware, and that is the obvious next step.

The desktop still runs on the card-specific driver path. A Window Server driver for a plain VESA frame buffer would be the natural follow-on here.
